Industrial Stainless Steel Bag Filter Housing (SWFI Series)

304 stainless steel bag filter housing with clamp, lifting-ring and multi-bag configurations for sediment pretreatment and compatible industrial liquids in Sabah.

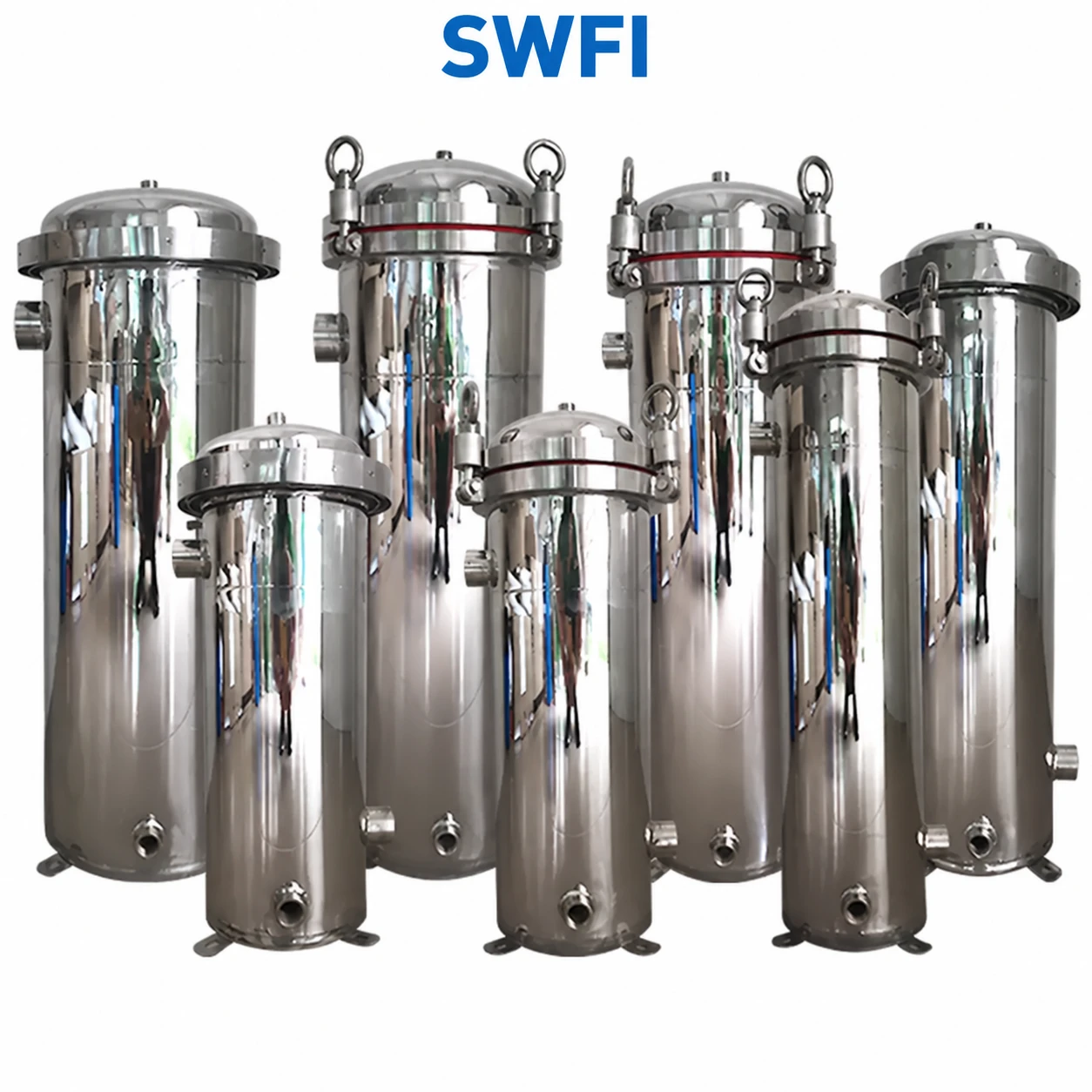

Industrial Stainless Steel Bag Filter Housing (SWFI Series) — stainless steel housing range

Product overview

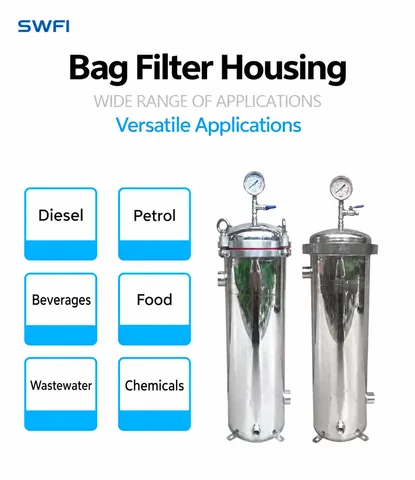

The SWFI Series stainless steel bag filter housing provides a replaceable-bag filtration stage for industrial and commercial liquid pretreatment in Sabah. The 304 stainless steel housing has a mirror-polished finish and is available with clamp or lifting-ring closures. Select the housing, filter bag and seals to match the liquid, required flow, solids loading and operating pressure. Typical water duties include sediment pretreatment for well water, river water and turbid tap water, including suitable upstream stages for RO and UF systems. Diesel filtration requires confirmation of the complete housing, bag and seal compatibility with the intended fuel and operating conditions.

Key features

Applications

Technical information

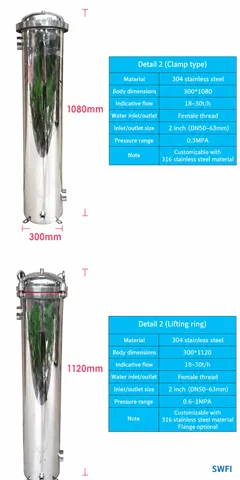

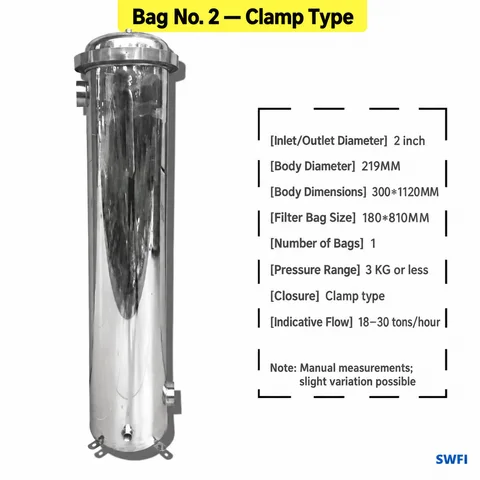

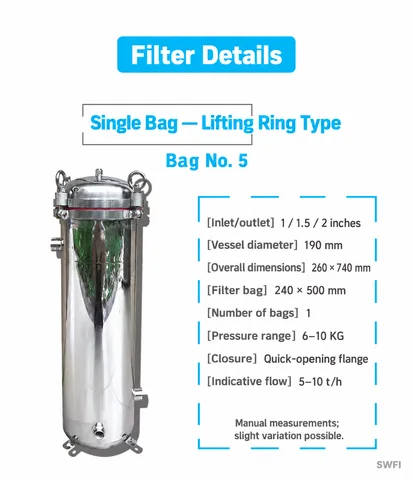

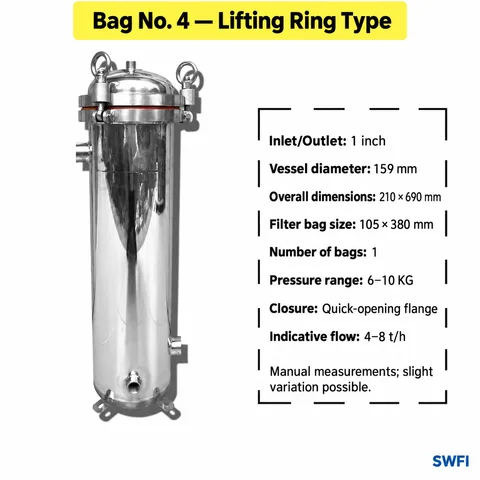

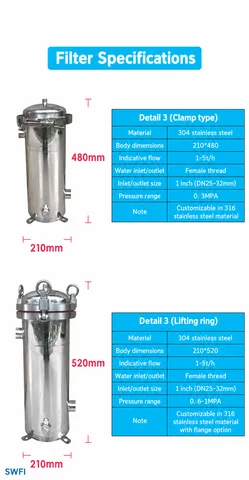

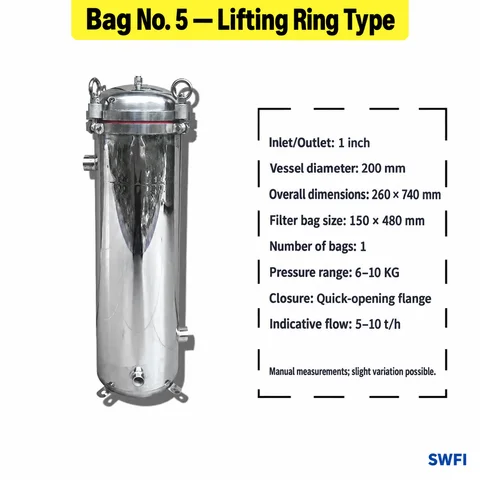

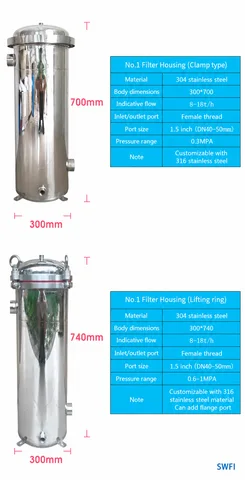

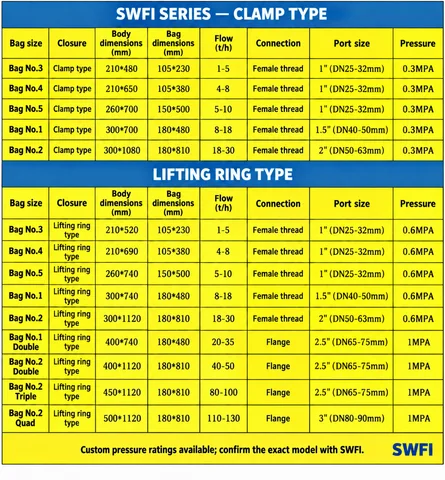

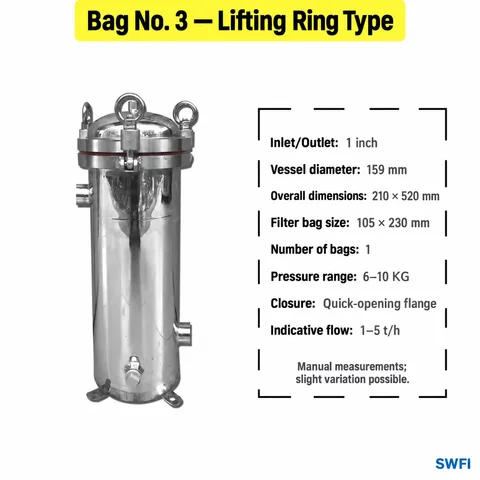

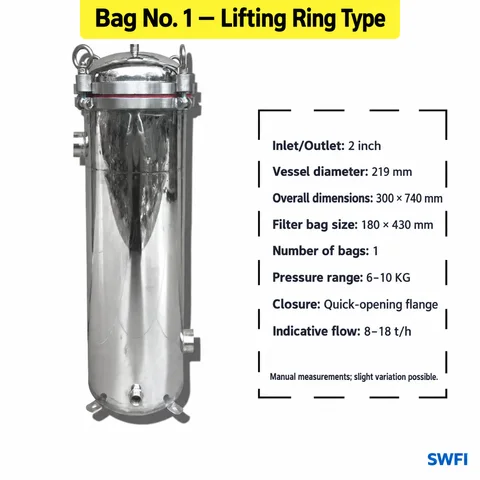

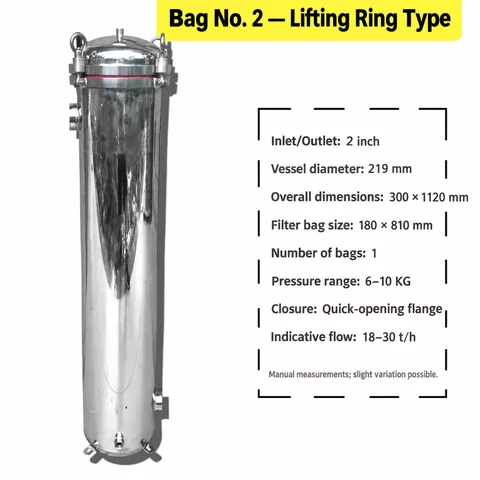

Material: 304 stainless steel; mirror-polished finish. Dimensions below are overall body size and filter-bag size in mm, as stated in the supplied model schedule. Flow figures are indicative tonnes/hour for the stated water duty; actual flow depends on the liquid, bag rating, differential pressure and solids loading. CLAMP TYPE — stated pressure rating 0.3 MPa Bag No. 3 | Flow 1–5 t/h | Body 210 × 480 mm | Bag 105 × 230 mm | Female-thread ports 1 inch Bag No. 4 | Flow 4–8 t/h | Body 210 × 650 mm | Bag 105 × 380 mm | Female-thread ports 1 inch Bag No. 5 | Flow 5–10 t/h | Body 260 × 700 mm | Bag 150 × 500 mm | Female-thread ports 1 inch Bag No. 1 | Flow 8–18 t/h | Body 300 × 700 mm | Bag 180 × 480 mm | Female-thread ports 1.5 inch Bag No. 2 | Flow 18–30 t/h | Body 300 × 1080 mm | Bag 180 × 810 mm | Female-thread ports 2 inch LIFTING RING TYPE — standard schedule 0.6 MPa; higher ratings require exact-model confirmation Bag No. 3 | Flow 1–5 t/h | Body 210 × 520 mm | Bag 105 × 230 mm | Female-thread ports 1 inch Bag No. 4 | Flow 4–8 t/h | Body 210 × 690 mm | Bag 105 × 380 mm | Female-thread ports 1 inch Bag No. 5 | Flow 5–10 t/h | Body 260 × 740 mm | Bag 150 × 500 mm | Female-thread ports 1 inch Bag No. 1 | Flow 8–18 t/h | Body 300 × 740 mm | Bag 180 × 480 mm | Female-thread ports 1.5 inch Bag No. 2 | Flow 18–30 t/h | Body 300 × 1120 mm | Bag 180 × 810 mm | Female-thread ports 2 inch MULTI-BAG CONFIGURATIONS — stated pressure rating 1 MPa Double, No. 1 bags | 20–35 t/h | Body 400 × 740 mm | Bag 180 × 480 mm | 2.5-inch flange Double, No. 2 bags | 40–50 t/h | Body 400 × 1120 mm | Bag 180 × 810 mm | 2.5-inch flange Triple, No. 2 bags | 80–100 t/h | Body 450 × 1120 mm | Bag 180 × 810 mm | 2.5-inch flange Quad, No. 2 bags | 110–130 t/h | Body 500 × 1120 mm | Bag 180 × 810 mm | 3-inch flange The supplied images contain variant differences in bag dimensions, port sizes and pressure ranges. Confirm the final drawing, thread standard, bag size, micron rating, seal material, temperature and maximum allowable operating pressure for the selected model before ordering.

Selection information

Frequently asked questions

What does this housing filter?

It holds a replaceable filter bag that captures particles within the chosen bag rating. It is a pretreatment stage; particle removal depends on the bag and operating conditions.

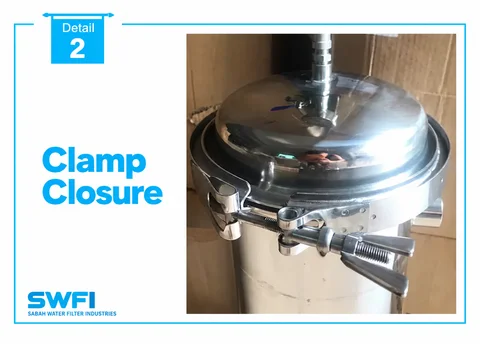

What is the difference between clamp and lifting-ring models?

The supplied schedule lists clamp models at 0.3 MPa and standard lifting-ring models at 0.6 MPa. Confirm the exact pressure-rated assembly and closure supplied for your project.

Can it be used for diesel?

Diesel duty requires confirmation of housing, filter-bag and seal compatibility with the fuel, temperature and operating pressure. Specify the intended liquid when requesting a quotation.

How should I choose a model?

Provide the required flow, liquid type, sediment loading, bag micron rating, pipe connection, operating pressure and temperature. SWFI can review these requirements for your Sabah project.

Discuss this product with SWFI in Kota Kinabalu

For a different bag size, seal material or multi-bag configuration, send SWFI your required duty and connection details. Final specifications and availability are subject to confirmation.
