Confirm the complete fitting
Record the thread or connection, overall dimensions, slot specification, material and quantity. Photograph the distributor plate or lateral arrangement where accessible during an authorised inspection. An unsuitable nozzle can retain the wrong media size or distribute water unevenly. The component’s suitability must be checked against the filter duty and operating conditions.
Nozzles, laterals and distributors perform different fitting roles
A filter nozzle retains selected media while admitting water through its openings. A lateral or distributor forms part of the arrangement that collects or spreads flow across the vessel. Their geometry must match the vessel and bed. A damaged internal fitting can therefore require a different repair from replacing exhausted media. Establish the component identity before ordering a visually similar part.
| Requirement | What to compare | What to confirm |
|---|---|---|
| Nozzle replacement | Match openings, connection and dimensions | Check compatibility with the media grading |
| Lateral replacement | Match layout and connection positions | Confirm the complete assembly arrangement |
| Distributor renewal | Review the vessel’s internal drawing | Check quantities and support points |
A selection mistake to avoid
Never assume that a thread that fits proves suitability. Different slots, lengths and materials can change how the component works in the filter.
What photographs help identify a replacement?
Include the part beside a scale, its connection and the vessel’s internal arrangement where an authorised inspection permits it. Provide the original drawing or part number if available.
Planning the enquiry in Sabah
For a refurbishment in Sabah, combine the nozzle enquiry with the vessel drawings and proposed media specification. Identify whether the request is for a single damaged part or a full distributor renewal. Plan the shutdown, inspection and reassembly with the servicing team, including checks for other damaged internal components before the vessel is returned to use.
Information to prepare
- Part number, dimensions and connection
- Media specification and vessel arrangement
- Required quantity and operating conditions
Is a matching thread enough to confirm compatibility?
No. Thread fit is only one check. Slot size, dimensions, material and the internal distribution arrangement also need to be suitable.
Discuss your requirement with SWFI
Share your site location and the information listed above. SWFI can review the requirement; equipment selection, supply and service scope are subject to technical suitability and confirmation.
Request a consultationNeed a specific component? →Technical background and SWFI scope: CDC: choosing water filters · SWFI: systems, equipment and service information. Equipment-specific limits should be checked in the current manufacturer documentation.
Related SWFI products
Options relevant to this guide. The final model and configuration should match the application, water conditions and current availability.
Filter Nozzle & Distribution System

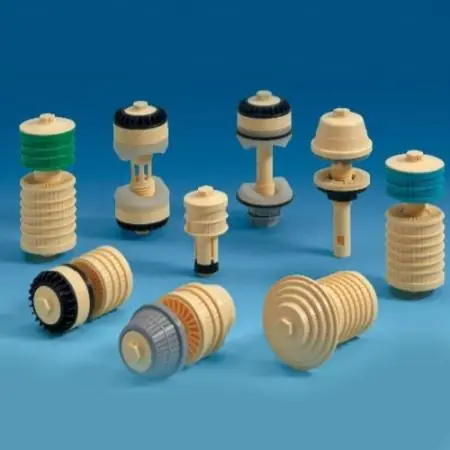

PP Filter Nozzles
Media-retention and flow-distribution fittings to match to the vessel.
View product details →
Filter Nozzle & Distribution System

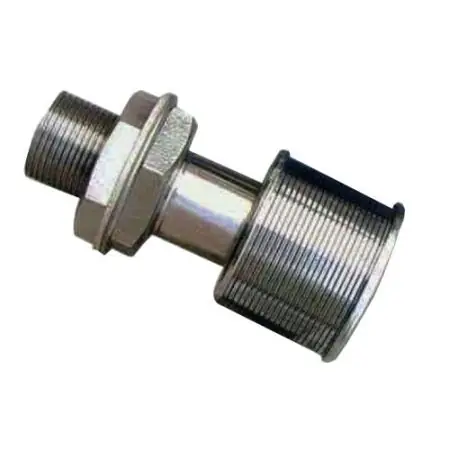

Stainless Steel Filter Nozzle
A stainless nozzle option for a compatible internal arrangement.
View product details →
Filter Nozzle & Distribution System

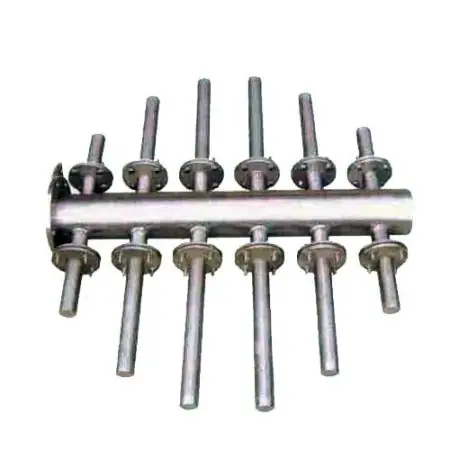

Stainless Steel Distribution System
