ARKA F90FV 3 Inch Foot Valve — Web Reference

Product overview

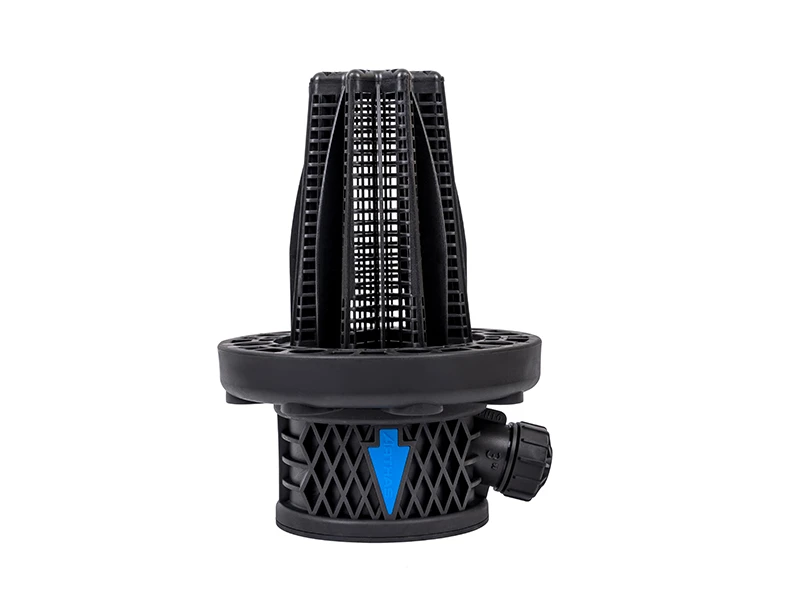

ARKA F90FV 3 Inch Foot Valve — Web Reference is offered for application-based water-system selection in Sabah. The intake valve opens with forward suction flow and closes when flow stops. The fitted intake arrangement helps retain pump priming and excludes larger debris according to its design. Match the intake layout and pump-suction conditions to the selected valve. SWFI can review the stated model and site requirements for quotation; the final supplied configuration is subject to confirmation.

Key features

• Pump-intake non-return function
• Intake debris protection according to the supplied design
• Provide access for inspection and cleaning

Applications

• Water duty: Compatible source water at pump intakes
• Water duty: Well, reservoir and irrigation intake water where solids and materials are suitable
• Industry: Agricultural pump suction lines
• Industry: Raw-water pumping
• Industry: Industrial water-transfer pump installations

Technical information

Selection information

• Required flow and operating pressure
• Water source, solids load and chemical/material compatibility
• Pipe connection and dimensional clearance
• Filtration grade or valve function appropriate to the downstream duty
• Maintenance access and control/backwash provision where applicable

Frequently asked questions

How does the F90FV work?

The intake valve opens with forward suction flow and closes when flow stops. The fitted intake arrangement helps retain pump priming and excludes larger debris according to its design.

Which water and industries suit the F90FV?

The relevant duties are listed above. Match the water's solids, chemistry and temperature to the exact materials and operating envelope. The selected model's duty must be reviewed for the intended site.

What information does SWFI need for F90FV selection?

Provide normal and peak flow, water source and solids characteristics, pressure and temperature, pipe/connection standard, downstream equipment needs and the model code. Include control-voltage and backwash/drain details where applicable.

Where are the F90FV drawings and technical references?

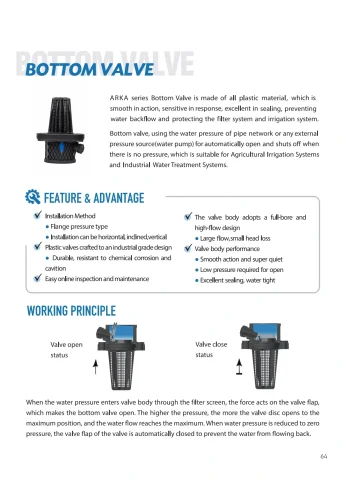

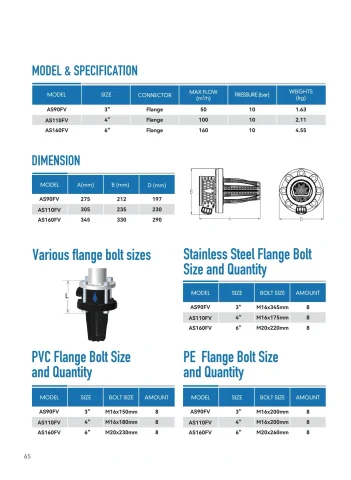

Download ARKA technical catalogue (PDF) Technical sheet 1 · Technical sheet 2 These are manufacturer references. Related-model tables do not assign every rating to the selected model.

Are there source differences for F90FV?

The supplied catalogue describes AS90FV foot valves. Equivalence with web reference F90FV is not established; catalogue foot-valve images are related-family references, not an assigned F90FV rating.
