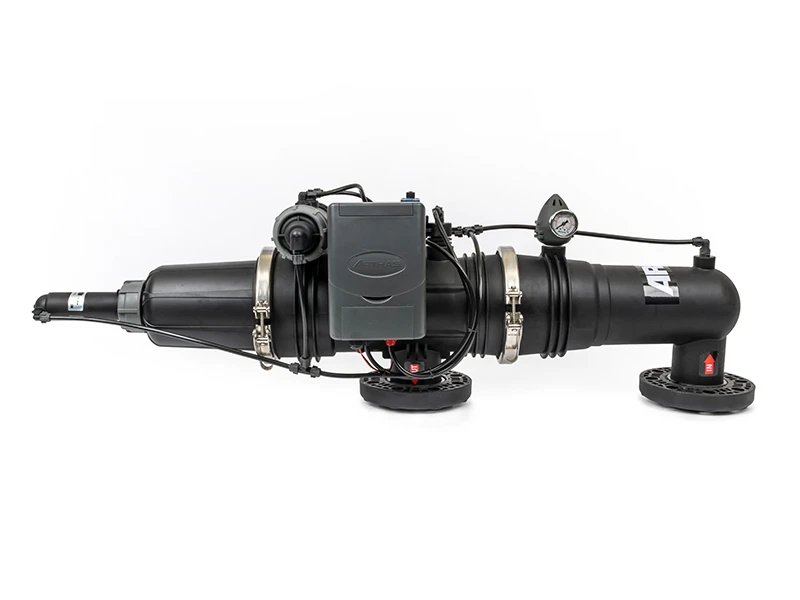

ARKA F90ASC manufacturer product reference

Product overview

ARKA F90ASC 3 Inch Automatic Backwash Screen Filter is offered for application-based water-system selection in Sabah. The mesh element intercepts suspended particles. Cleaning method depends on the selected manual, spiral-clean or automatic model. Match the model to the required water quality, pipe connections, operating pressure and flow. SWFI can review the stated model and site requirements for quotation; the final supplied configuration is subject to confirmation.

Key features

Mesh-based particle removal
Serviceable filtering element
Select the cleaning arrangement for the solids load

Applications

Water duty: Water carrying suspended particles suitable for the selected screen grade
Water duty: Pretreated river, canal and well water
Water duty: Compatible industrial recirculation water
Industry: Agricultural and landscape irrigation
Industry: Pump-station and distribution filtration
Industry: Industrial cooling-water and process-water particle pretreatment

Technical information

Manufacturer reference: ARKA F90ASC SELECTED MODEL — source-checked catalogue/web data Flange/VIC; mesh 60/80/120; maximum flow 50 m³/h; working pressure 10 bar; weight 15 kg; A/B/C/D/L 500/186/223/422/1223 mm; M connection 1.5 inch BSP; minimum backwash pressure 1 bar; minimum backwash flow 1.5 L/s. MANUFACTURER WEB TABLES — related models and original labels are retained below; selected-model notes above take precedence where a source conflicts. Quality of water | 200 | 130 80 | 120 Good | 50 | 48 Average | 47 | 45 poor | 45 | 43 very poorer | 43 | 40 WATER-QUALITY FLOW REFERENCE 200 µm / 130 µm per catalogue: Good 50/48; Average 47/45; Poor 45/43; Very poor 43/40 m³/h. See gallery technical sheets for model-family tables, connection drawings and head-loss/performance curves. Ratings are manufacturer references, not guaranteed duty at every water quality. Confirm the exact material, filtration grade where applicable, flow, pressure, temperature and installation drawing.

Selection information

Required flow and operating pressure
Water source, solids load and chemical/material compatibility
Pipe connection and dimensional clearance
Filtration grade or valve function appropriate to the downstream duty
Maintenance access and control/backwash provision where applicable

Frequently asked questions

How does the F90ASC work?

The mesh element intercepts suspended particles. Cleaning method depends on the selected manual, spiral-clean or automatic model.

Which water and industries suit the F90ASC?

The relevant duties are listed above. Match the water's solids, chemistry and temperature to the exact materials and operating envelope. The selected model's duty must be reviewed for the intended site.

What information does SWFI need for F90ASC selection?

Provide normal and peak flow, water source and solids characteristics, pressure and temperature, pipe/connection standard, downstream equipment needs and the model code. Include control-voltage and backwash/drain details where applicable.

Where are the F90ASC drawings and technical references?

Download ARKA technical catalogue (PDF) Technical sheet 1 · Technical sheet 2 These are manufacturer references. Related-model tables do not assign every rating to the selected model.

Discuss this product with SWFI in Kota Kinabalu

For another screen filter size or configuration, provide the model code and site duty. SWFI can review sourcing and selection, subject to technical suitability and availability.
