ARKA F202-3 manufacturer product reference

Product overview

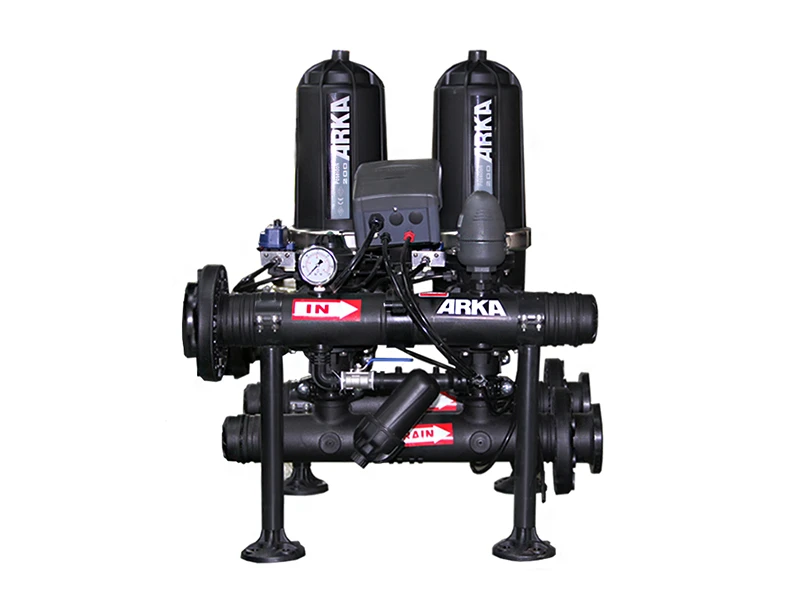

ARKA F202-3 2 Inch Two-Unit T-Type Disc Filter Bank is offered for application-based water-system selection in Sabah. A common manifold distributes water to multiple T-Type disc units. A compatible controller sequences reverse-flow backwashing of individual units and discharges retained solids through the drain manifold. Match the model to the required water quality, pipe connections, operating pressure and flow. SWFI can review the stated model and site requirements for quotation; the final supplied configuration is subject to confirmation.

Key features

Modular T-Type filtration bank
Sequential automatic backwash with the specified controls
Match flow to filtration grade and actual water quality

Applications

Water duty: Surface-water sources carrying suspended solids after suitable grit or media pretreatment
Water duty: Irrigation supply water
Water duty: Compatible industrial cooling, process or recycled water; assess solids and material compatibility
Industry: Large irrigation networks
Industry: Industrial water pretreatment
Industry: Water-reuse and commercial utility systems

Technical information

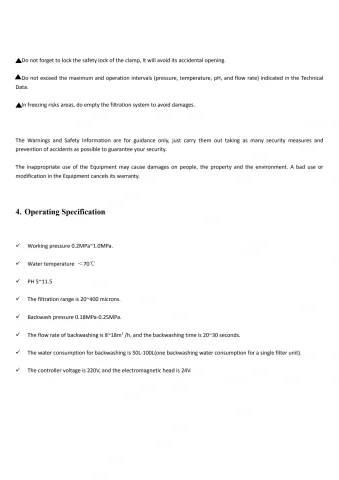

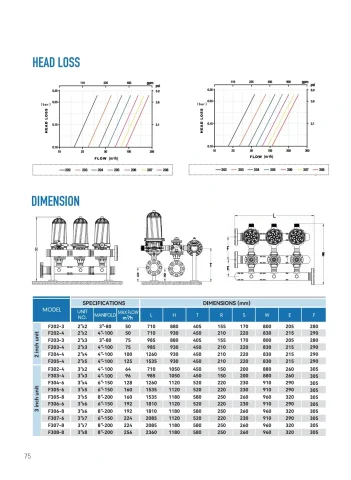

Manufacturer reference: ARKA F202-3 SELECTED MODEL — source-checked catalogue/web data Two 2 inch units; manifold 3 inch / 80 reference; maximum flow 50 m³/h; catalogue L/H/T/R/S/W/E/F 710/880/405/155/170/800/205/280 mm. SOURCE DIFFERENCE / IDENTIFICATION NOTE The manual lists T=400 mm and R=160 mm; catalogue lists 405 and 155 mm. Confirm the project drawing. SYSTEM MANUAL REFERENCE Working-pressure example 0.2–1.0 MPa; water temperature below 70°C; pH 5–11.5; filtration range 20–400 µm. Grade-dependent minimum backwash: 200–130 µm, 1.8 bar and 2.5 L/s; 100 µm, 2.5 bar and 3.1 L/s; 50–20 µm, 3 bar and 3.3 L/s. Controller example 220 V and solenoid 24 V; confirm the supplied electrical configuration. The manual specifies water service and excludes hazardous liquids and food-use liquids. The selected project drawing and component ratings govern the final assembly. See gallery technical sheets for model-family tables, connection drawings and head-loss/performance curves. Ratings are manufacturer references, not guaranteed duty at every water quality. Confirm the exact material, filtration grade where applicable, flow, pressure, temperature and installation drawing.

Selection information

Required flow and operating pressure
Water source, solids load and chemical/material compatibility
Pipe connection and dimensional clearance
Filtration grade or valve function appropriate to the downstream duty
Maintenance access and control/backwash provision where applicable

Frequently asked questions

How does the F202-3 work?

A common manifold distributes water to multiple T-Type disc units. A compatible controller sequences reverse-flow backwashing of individual units and discharges retained solids through the drain manifold.

Which water and industries suit the F202-3?

The relevant duties are listed above. Match the water's solids, chemistry and temperature to the exact materials and operating envelope. The selected model's duty must be reviewed for the intended site.

What information does SWFI need for F202-3 selection?

Provide normal and peak flow, water source and solids characteristics, pressure and temperature, pipe/connection standard, downstream equipment needs and the model code. Include control-voltage and backwash/drain details where applicable.

Where are the F202-3 drawings and technical references?

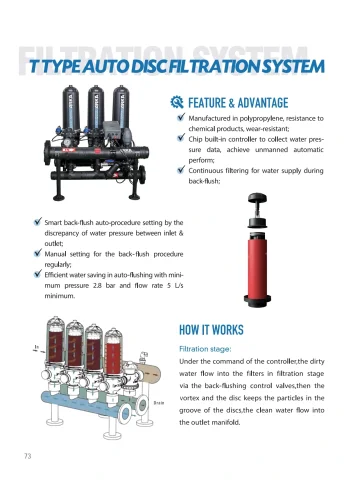

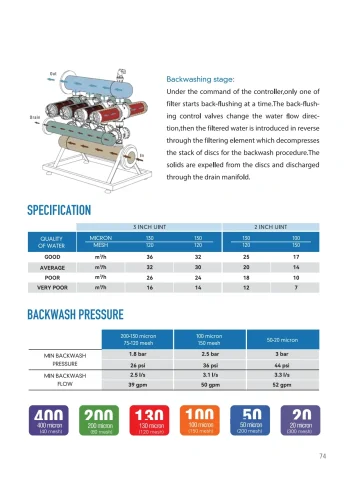

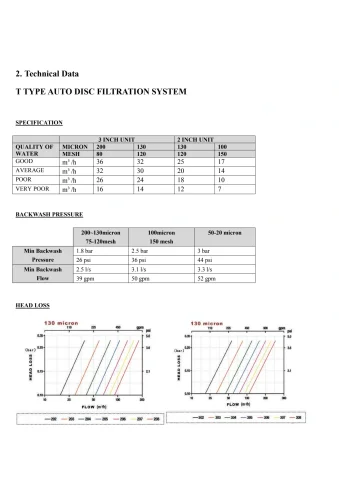

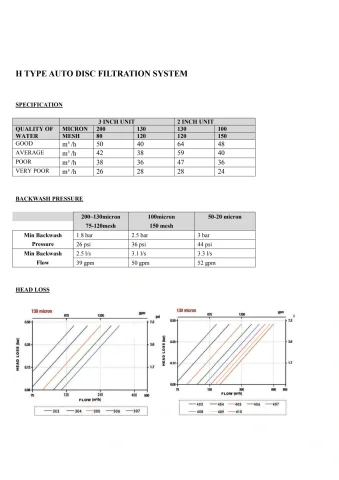

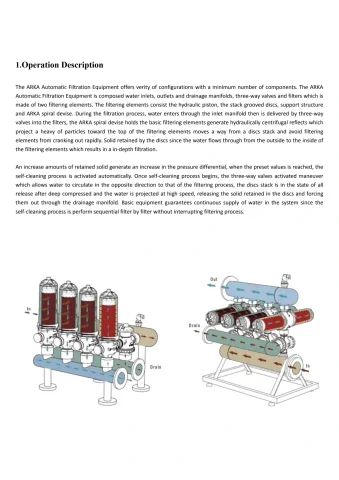

Download ARKA technical catalogue (PDF) · Download automatic filtration manual (PDF) Technical sheet 1 · Technical sheet 2 · Technical sheet 3 · Technical sheet 4 · Technical sheet 5 · Technical sheet 6 · Technical sheet 7 These are manufacturer references. Related-model tables do not assign every rating to the selected model.

Are there source differences for F202-3?

The manual lists T=400 mm and R=160 mm; catalogue lists 405 and 155 mm. Confirm the project drawing.

Discuss this product with SWFI in Kota Kinabalu

For another automatic disc filter system size or configuration, provide the model code and site duty. SWFI can review sourcing and selection, subject to technical suitability and availability.

Request a quotation View product in the main catalogue →
