Product overview

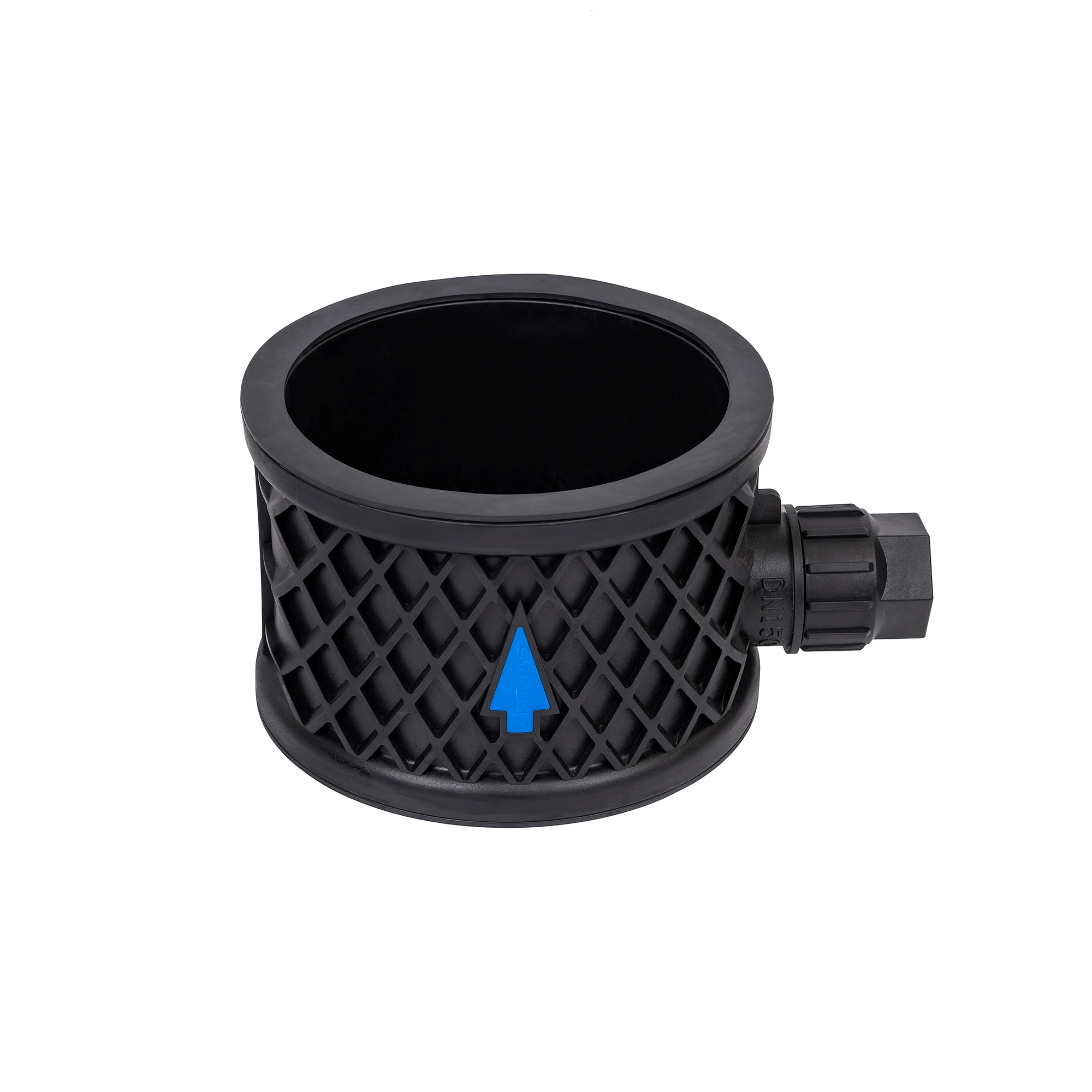

ARKA AS90NRV 3 Inch Flanged Check Valve is offered for application-based water-system selection in Sabah. Forward water pressure opens the non-return element. A loss or reversal of the pressure differential closes it to limit reverse flow. Match the model to the required water quality, pipe connections, operating pressure and flow. SWFI can review the stated model and site requirements for quotation; the final supplied configuration is subject to confirmation.
Key features
- Automatic non-return action
- Flanged installation
- Match pressure, flow and solids conditions to the model
Applications
- Water duty: Compatible pumped-water and irrigation distribution lines
- Water duty: Raw-water or treated-water pipework subject to the specified materials and solids conditions
- Industry: Pump discharge and water distribution
- Industry: Irrigation networks
- Industry: Industrial water-treatment pipework
Technical information
Selection information
- Required flow and operating pressure
- Water source, solids load and chemical/material compatibility
- Pipe connection and dimensional clearance
- Filtration grade or valve function appropriate to the downstream duty
- Maintenance access and control/backwash provision where applicable
Frequently asked questions
How does the AS90NRV work?
Forward water pressure opens the non-return element. A loss or reversal of the pressure differential closes it to limit reverse flow.
Which water and industries suit the AS90NRV?
The relevant duties are listed above. Match the water's solids, chemistry and temperature to the exact materials and operating envelope. The selected model's duty must be reviewed for the intended site.
What information does SWFI need for AS90NRV selection?
Provide normal and peak flow, water source and solids characteristics, pressure and temperature, pipe/connection standard, downstream equipment needs and the model code. Include control-voltage and backwash/drain details where applicable.
Where are the AS90NRV drawings and technical references?

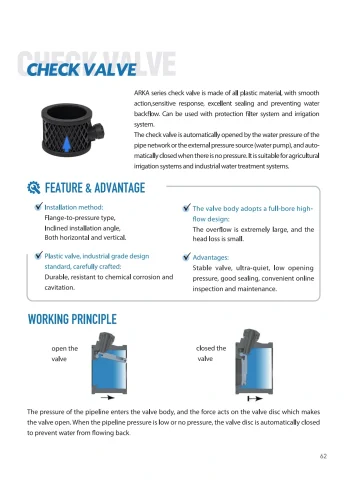

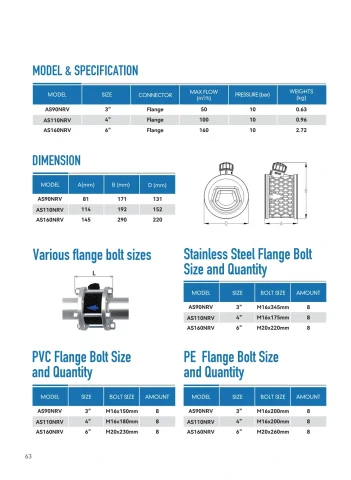

Download ARKA technical catalogue (PDF) Technical sheet 1 · Technical sheet 2 These are manufacturer references. Related-model tables do not assign every rating to the selected model.
Discuss this product with SWFI in Kota Kinabalu
For another check valve size or configuration, provide the model code and site duty. SWFI can review sourcing and selection, subject to technical suitability and availability.
Request a quotationView product in the main catalogue →
