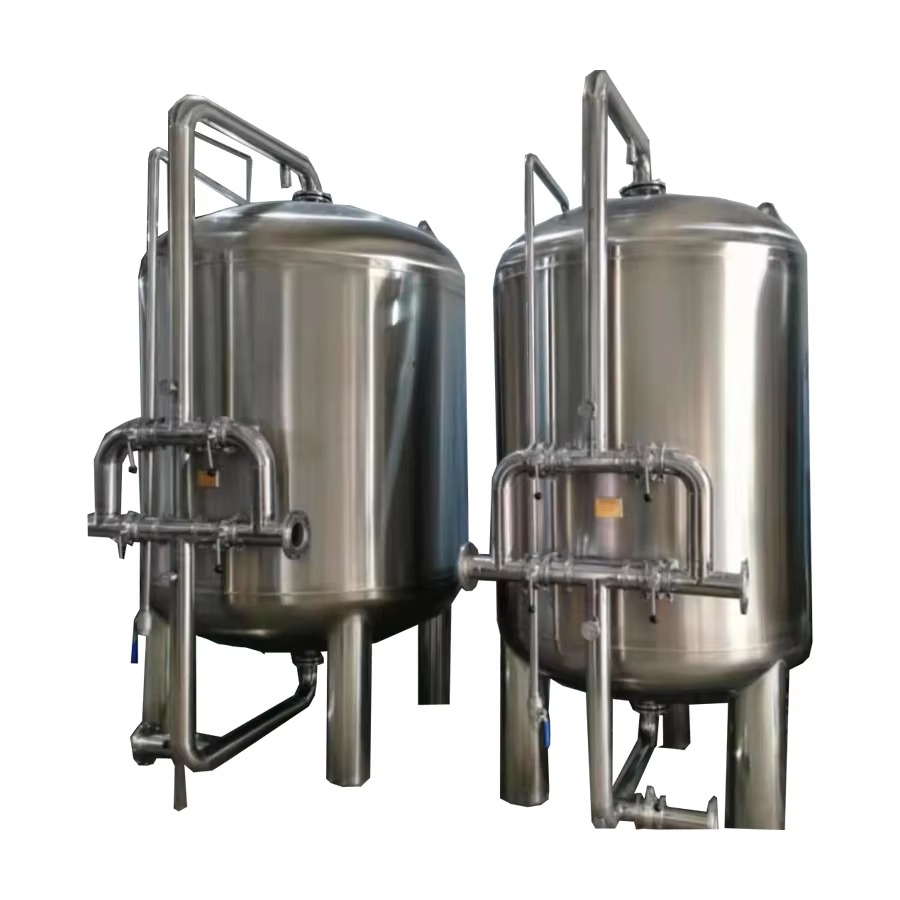

Centralised stainless steel water filtration vessel
The SWFI Industrial Stainless Steel Water Filter series provides vessel options for centralised water filtration and water-softening configurations. The vessel houses selected treatment media and is installed at a shared point before water is distributed through a facility. Choose the model and treatment arrangement according to the water source, water analysis, treatment objective, service flow, backwash requirements, available space and project specifications. Vessel material and size alone do not determine filtration performance or drinking-water suitability.
Key product details
- Stainless steel vessel material options: SUS304 or SUS316L
- 16 catalogue models with vessel diameters from φ325 to φ2200
- Catalogue design pressure: 0.6 MPa
- Separate catalogue flow ranges for filtration and water-softening configurations

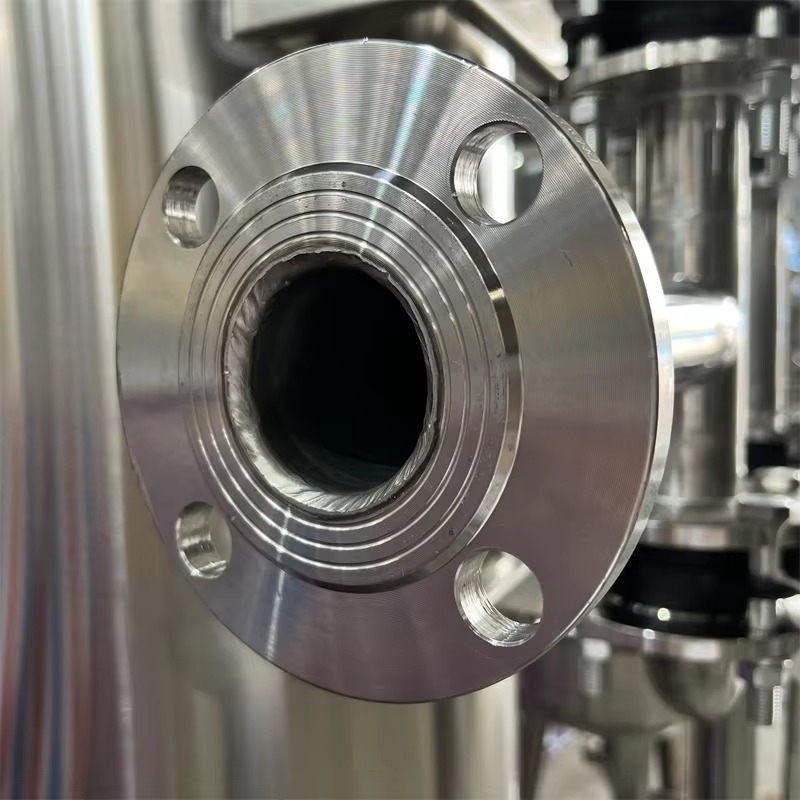

- Model-dependent housing thickness from 1.5 to 4.0 mm and inlet/outlet connections from DN25 to DN125
- Can be configured for suitable media filtration or water softening; media and system components must be selected for the treatment duty
- SWFI can review new systems, vessel supply, replacement and upgrade requirements for Sabah projects
Where it can be used
- Centralised incoming-water filtration for commercial premises, hotels, resorts and facilities with shared distribution
- Factory utility-water and industrial water-treatment systems
- Raw-water treatment configurations, subject to water analysis and process design
- Pretreatment for reverse osmosis (RO) and other process equipment
- Water-softening systems when configured with suitable ion-exchange resin and regeneration arrangement
- Replacement or upgrade of existing media-filter installations

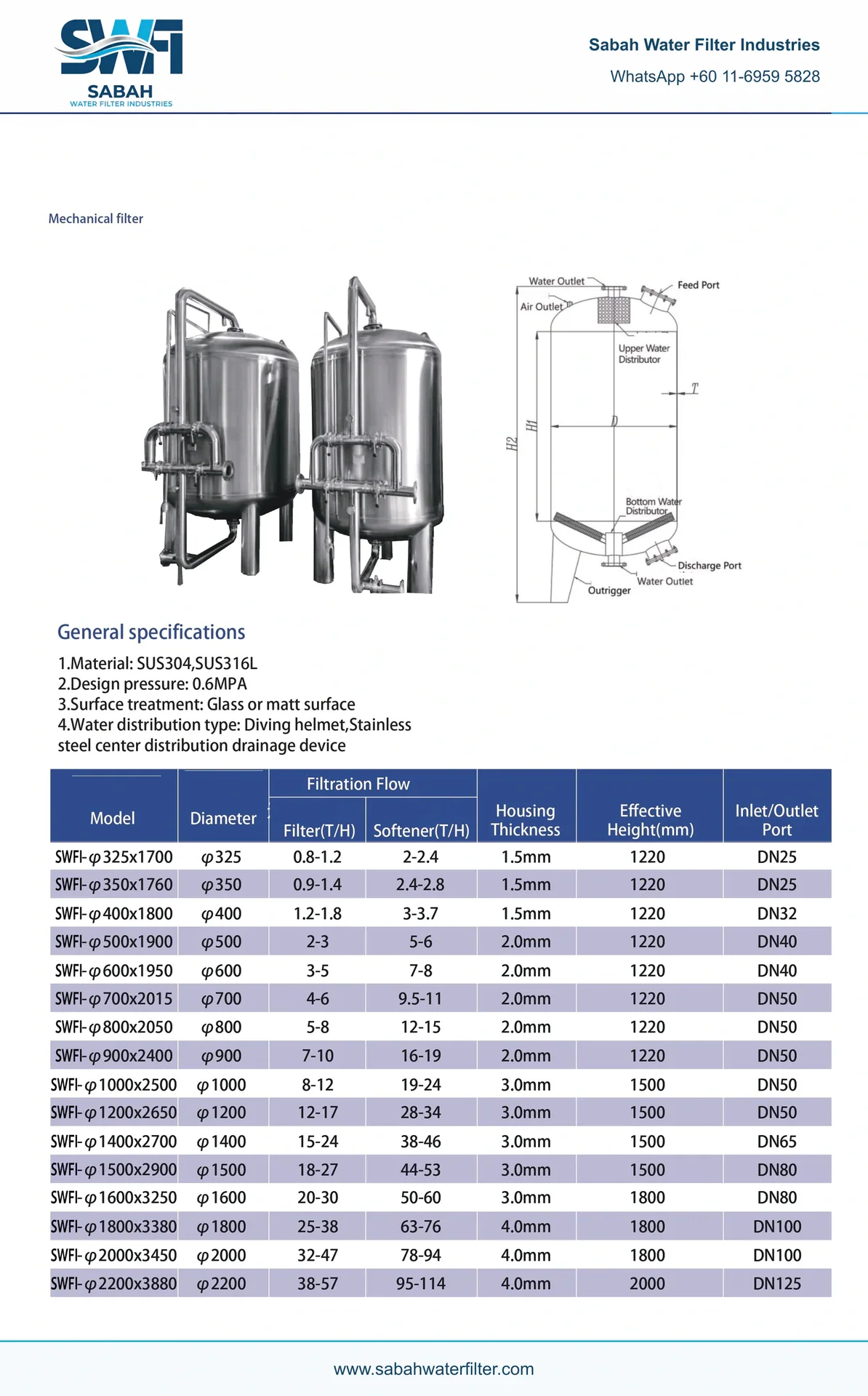

Catalogue model schedule
The catalogue lists separate flow ranges for filtration and softening. Diameter values and flow unit T/H are reproduced as listed; the catalogue does not specify the diameter unit. Confirm configuration and operating conditions before selection.
| Model | Diameter* | Filter flow (T/H) | Softener flow (T/H) | Thickness | Effective height (mm) | Inlet/outlet |
|---|---|---|---|---|---|---|
| SWFI-φ325x1700 | φ325 | 0.8–1.2 | 2–2.4 | 1.5 mm | 1220 | DN25 |
| SWFI-φ350x1760 | φ350 | 0.9–1.4 | 2.4–2.8 | 1.5 mm | 1220 | DN25 |
| SWFI-φ400x1800 | φ400 | 1.2–1.8 | 3–3.7 | 1.5 mm | 1220 | DN32 |
| SWFI-φ500x1900 | φ500 | 2–3 | 5–6 | 2.0 mm | 1220 | DN40 |
| SWFI-φ600x1950 | φ600 | 3–5 | 7–8 | 2.0 mm | 1220 | DN40 |
| SWFI-φ700x2015 | φ700 | 4–6 | 9.5–11 | 2.0 mm | 1220 | DN50 |
| SWFI-φ800x2050 | φ800 | 5–8 | 12–15 | 2.0 mm | 1220 | DN50 |
| SWFI-φ900x2400 | φ900 | 7–10 | 16–19 | 2.0 mm | 1220 | DN50 |
| SWFI-φ1000x2500 | φ1000 | 8–12 | 19–24 | 3.0 mm | 1500 | DN50 |
| SWFI-φ1200x2650 | φ1200 | 12–17 | 28–34 | 3.0 mm | 1500 | DN50 |
| SWFI-φ1400x2700 | φ1400 | 15–24 | 38–46 | 3.0 mm | 1500 | DN65 |
| SWFI-φ1500x2900 | φ1500 | 18–27 | 44–53 | 3.0 mm | 1500 | DN80 |
| SWFI-φ1600x3250 | φ1600 | 20–30 | 50–60 | 3.0 mm | 1800 | DN80 |
| SWFI-φ1800x3380 | φ1800 | 25–38 | 63–76 | 4.0 mm | 1800 | DN100 |
| SWFI-φ2000x3450 | φ2000 | 32–47 | 78–94 | 4.0 mm | 1800 | DN100 |
| SWFI-φ2200x3880 | φ2200 | 38–57 | 95–114 | 4.0 mm | 2000 | DN125 |
Selection notes
Choose the vessel based on water analysis, treatment objective, normal and peak flow, pressure, backwash-water availability, drainage, connections, available space and maintenance access. Vessel material and size alone do not establish contaminant-removal performance or drinking-water suitability.
Frequently asked questions
What is an industrial stainless steel water filter?
It is a treatment vessel installed within a water system. In a media-filter configuration, water passes through selected media to achieve a defined treatment objective. Vessel material alone does not determine contaminant-removal performance.
What material options are available?
The catalogue lists SUS304 and SUS316L stainless steel. Select the appropriate grade according to water chemistry, operating environment and project specifications, and confirm it in the quotation.
How do I choose a model?
Consider treatment duty, water analysis, normal and peak flow, pressure, backwash-water availability, drainage, connections, installation space and maintenance access. SWFI can review these requirements.
What is the difference between filter flow and softener flow?
They are catalogue references for different treatment configurations. Use the filter-flow values for filtration assessment and the softener-flow values only for a suitable resin softening arrangement.
Does the vessel automatically include media and automatic backwashing?
The catalogue describes vessel options and separate treatment configurations; it does not establish that every model includes all media, valves or automatic controls. Confirm the supplied scope, media and backwash arrangement in the quotation.
Will filtered water be safe to drink?
Drinking-water suitability cannot be established from vessel specifications or clarity alone. The treatment train must be designed for the source water and verified against applicable water-quality requirements.
Can it remove dissolved salts?
A conventional media-filter configuration is not intended for broad dissolved-salt removal. If that is the objective, assess a suitable process such as reverse osmosis.
Need help selecting a model?
Share your site location, water source or analysis, treatment objective, required flow and preferred material grade so SWFI can review the application and confirm the final configuration.
